Ultraviolet Sterilizers: In such types of filter systems, a high frequency light is introduced into a glass or container. The light promptly kills all the organisms present in the water. Although, it is a fast and instantaneous way to purify a glass of water, the result is never guaranteed without a lab test.

CRYSTAL QUEST  commercial and residential Ultraviolet Water Sterilizer Systems are specifically designed to meet the demanding microorganism control. These microorganisms can  range from bacteria and viruses to algae and protozoa. A major advantage of UV treatment is that it is capable of disinfecting water faster than chlorine without cumbersome retention tanks and harmful chemicals to your drinking water. CRYSTAL QUEST commercial and residential Ultraviolet Water Sterilizer are  also extremely cost efficient, the most ecological way of treating your water and all for pennies a day!

CRYSTAL QUEST  commercial and residential Ultraviolet Water Sterilizer Systems are manufactured with axial flow reactors in 304 stainless steel. The UV lamp,  incorporate natural ultraviolet light energy to eradicate microbiological contamination. Water enters through the bottom part of the reactor chamber and swirls around a high output, low  pressure mercury vapor lamp thermally protected by a quartz sleeve. The UV lamp emits powerful ultraviolet light. Energy components contained in microorganisms absorb the light energy; this disrupts the DNA and prevents reproduction. The UV lamp should be replaced annually.

Applications include  post under-sink water filters, post whole house water filters, water coolers, pre and post osmosis systems, private wells, camp grounds, hotels, bottlers, aquaculture, hospitals, food, cottages, restaurants, breweries, laboratories, marine, pharmaceutical, dairies and many other applications.

Advantages of CRYSTAL QUEST  commercial and residential Ultraviolet Water Sterilizer Systems
  • No chemicals added to the water supply - no byproducts, (i.e. chlorine + organics = trihalomethanes).
  • Environmentally and user friendly, no dangerous chemicals to handle or store, no risks of overdosing.
  • Easy installation, only two water connections and a power connection.
  • No change in taste, odor, pH or conductivity nor the general chemistry of the water.
  • More effective against viruses than chlorine.
  • Extremely economical, hundreds of gallons may be treated for each penny of operating cost.
  • Immediate treatment process, no need for holding tanks, long retention times, etc.
  • Automatic operation without special attention or measurement, operator friendly.
  • Simplicity and ease of maintenance, periodic cleaning, (if applicable), and annual lamp replacement, no moving parts to wear out.
  • No handling of toxic chemicals, no need for specialized storage requirements.
  • Low initial capital cost as well as reduced operating expenses when compared with similar technologies such as ozone, chlorine, etc.

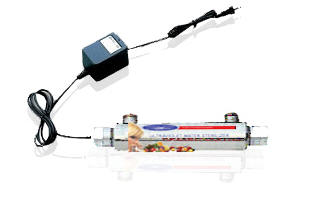

CQ-UV-1GPM

SPECIFICATION & FEATURES

Dimension

2.5"x11"

Inlet/Outlet Port Size

1/4" MNPT

Flow Rate (GPM)

1

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp life

9000 hrs ( approx. 1 year of use)

Audible Lamp Failure

Yes

LED "power-on" indicator

Yes

$120

US only shipping $9

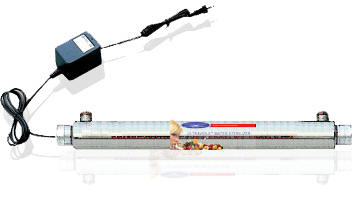

CQ-UV-6GPM

SPECIFICATION & FEATURES

Dimension

3"x21"

Inlet/Outlet Port Size

1/2" MNPT

Flow Rate (GPM)

6

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp life

9000 hrs ( approx. 1 year of use)

Audible Lamp Failure

Yes

LED "power-on" indicator

Yes

$322

US only shipping $19

CQ-UV-8GPM

SPECIFICATION & FEATURES

Dimension

3"x40"

Inlet/Outlet Port Size

1/2" MNPT

Flow Rate (GPM)

8

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp life

9000 hrs ( approx. 1 year of use)

Audible Lamp Failure

Yes

LED "power-on" indicator

Yes

$385

US only shipping $22

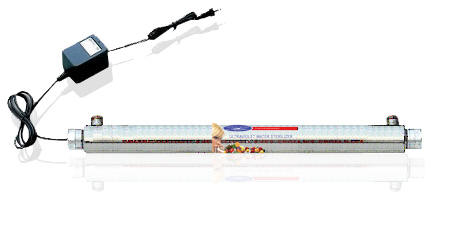

CQ-UV-12GPM

SPECIFICATION & FEATURES



Dimension

3"x40"

Inlet/Outlet Port Size

3/4" MNPT

Flow Rate (GPM)

12

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp life

9000 hrs ( approx. 1 year of use)

Audible Lamp Failure

Yes

LED "power-on" indicator

Yes

$425

US only shipping $23

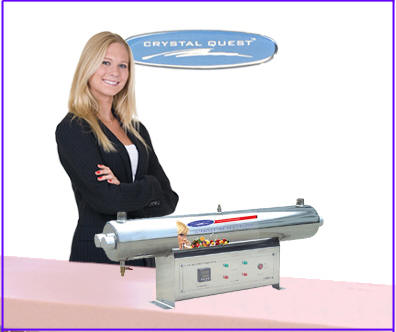

CQ-UV-24GPM

SPECIFICATION & FEATURES



Dimension

6"x14"x40"

Inlet/Outlet Port Size

1" MNPT

Flow Rate (GPM)

24

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

2

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator

Yes

$1,288

US only shipping $59

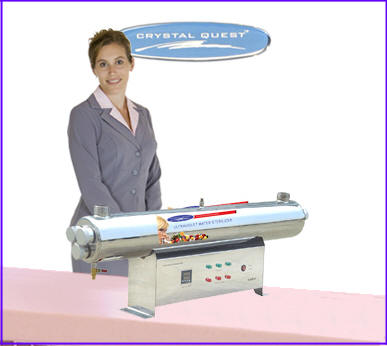

CQ-UV-36GPM

SPECIFICATION & FEATURES



Dimension

7"x14"x40"

Inlet/Outlet Port Size

1" MNPT

Flow Rate (GPM)

36

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

3

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator

Yes

$1,505

US only shipping $64

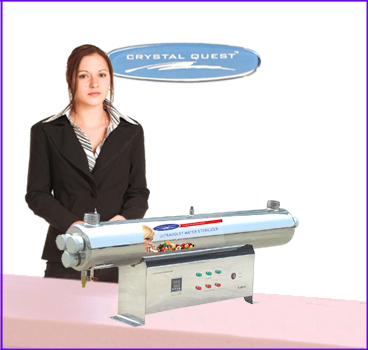

CQ-UV-48GPM

SPECIFICATION & FEATURES



Dimension

8"x16"x40"

Inlet/Outlet Port Size

1.5" MNPT

Flow Rate (GPM)

48

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

4

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator

Yes

$1,666

US only shipping $75

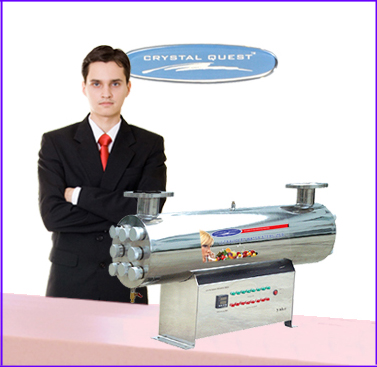

CQ-UV-60GPM

SPECIFICATION & FEATURES



Dimension

9"x18"x40"

Inlet/Outlet Port Size

2" MNPT

Flow Rate (GPM)

60

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

5

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator Yes



$2,148

US only shipping $75

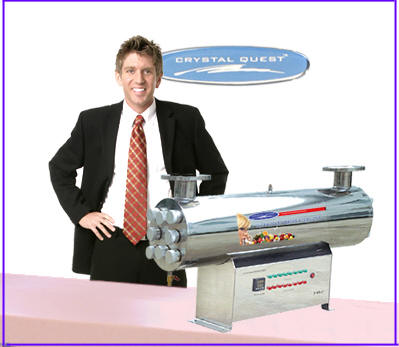

CQ-UV-72GPM

SPECIFICATION & FEATURES



Dimension

9"x18"x40"

Inlet/Outlet Port Size

2" MNPT

Flow Rate (GPM)

72

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

6

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator

Yes

$2,390

US only shipping $75

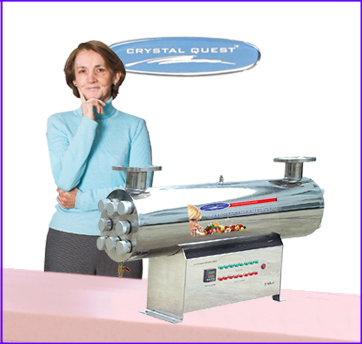

CQ-UV-84GPM

SPECIFICATION & FEATURES



Dimension

9"x18"x40"

Inlet/Outlet Port Size

2.5" MNPT

Flow Rate (GPM)

84

Electrical

110-130v/50-60 Hz

Maximum Operating Pressure

125 psi

Lamp/Quartz Sleeves

8

Lamp Replacement Indicator

Yes

Audible Lamp Failure

Yes

Total Running Time

Yes

Visual Lamp Life Remaining

Yes

LED "power-on" indicator

Yes

$2,550

US only shipping $99



Replacement Lamps

UV Lamp 1 GPM

$56

UV Lamp 6 GPM

$60

UV Lamp 8 GPM

$69

UV Lamp 12 GPM

(For 12, 24, 36, 48, 60, 72 & 84)

$72

Free Shipping

Lamp Intensity Chart
